Douglas A4 Skyhawk - PSSA Mass Build Project 2016

With the plan and wood pack being eagerly awaited by members of the PSSA, the chat has already begun about colour schemes.

Some of the guys have mentioned the schemes used by Viper and Jester in the film Top Gun.

But as I'm still developing my building and covering skills, a simpler scheme is called for. So I give you ....................

The US Navy flying display team, The Blue Angels

Rebuild of the Thermal Instinct Wing

Back in the summer I had an ooops moment when I misjudged the height of my Thermal Instinct, 3m F5J model, and I made contact with a tree.

Well now that my other rebuild projects are done, the Moth has been built, and I'm waiting for Traplet to release the Douglas A4 Skyhawk plan and wood pack, (for the PSSA mass build project), I thought I'd get on and rebuild the wing on the Thermal Instinct.

This is one of the panels, the opposite one is nowhere near as bad.

Well I thought I was going to have to painstakingly cut out individual wing ribs, but my Facebook friend, Armin Zander from Germany, informed me that Hollein, (the models supplier in Germany) provide a rib kit, at a cost of €42. So I have been in touch and a rib kit should be winging, (pardon the pun) its way to me next week.

So with any luck, this should be flying again by the time the warmer weather of spring arrives in S Wales.

Weekend Flying 30th/31st January

Hi all

Well another weekend is almost upon us and of course I have been looking at the weather forecast.

Saturday is looking the better day as showers/rain is forecast for Sunday, and I have another engagement booked for Sunday anyway, so no flying for me then.

But depending on which forecast you look at, it looks like it could be an epic day wind wise with speeds exceeding 25 mph, west or west north west at Cardiff Airport, which probably means 35 mph plus at the Bwlch, which equates to mental lift on Mickey's. Woooohoooooo!

So I hope to see a few people up there. I should be up there 11 - 11:30 ish.

Steve
Happy flying.

ME - 109 Build cont.

ME - 109 Build cont.

I need to add some strength back to the fuselage that I'll lose with the thinner correx, so I decided to add some stringers running down the model.

Bearing in mind that I am a cheap-skate   :-) and want to keep the build cost to a minimum instead of buying carbon rod I looked around my sheds and found some strong, light weight plant support sticks which will do nicely.

I rebated the top and bottom of the formers with my Dremel type tool and hot glued the stringers in place ensuring that they were straight.

De-fluteing.

Correx sheet needs to be more flexible to allow it to bend around curves, to achieve this we 'de-flute' it.
To do this you use a hooked Stanley knife type blade and slit open the flutes on the inside surface  of the correx by drawing the blade down the length of the sheet, ensuring you only cut through one side of the flute or you end up cutting the sheet in half.

Normally the plan will show you what sections you need to de-flute, but as this build plan is not intended for a correx model I have to decide as I go along where the curves are needed.




Before and after shot of a piece of de-fluted sheet, note how more flexible it is.

Fitting the fuselage sheeting

Normally you would have an 'un-wrapped' fuselage piece of sheet that you would wrap around the formers, glueing as you go.

But with this build I am finding that I have to use smaller pieces of sheet to build up the shape as I go along.

A problem with this method is that I will have a lot of joins that will need making good.

And this is as far as I've got at the moment...not looking like a 109 yet.

Stay tuned for the next instalment....

Build Blog of my 1350mm span Correx sheet ME - 109.

By Phil May

This build is going to hold a few more challenges than my previous correx builds, mainly because the plan I'm using is not the usual 'unwrapped ' fuselage and wing type but a conventional one.

Also I am going to build the fuselage out of 2mm sheet instead of my usual 4mm. The reason for this is to try to reduce weight of the finished model. First off I glued the plans of the formers onto 4mm correx and carefully cut these out using a sharp craft knife, ensuring the blade was kept vertical at all times. I then used coarse sandpaper where necessary to get the correct shape. A 10mm hole was then drilled at the pre-marked centre spot. All the formers were then slide onto a length of 10mm diameter wooden dowel and lined up as per plan....This ensures that the fuselage is going to be build straight and true.

This is the plan I'm working off.

Former plans glued onto 4mm Correx sheet

  Formers are pushed on to wooden dowel

Maiden flight of the Moth

So here it is, the maiden flight of the Moth.

This took place on the Back of Wrecker at the Bwlch. On arrival, the cloud was very low, and sometimes low enough to engulf us in what the locals call, "clag".

A few of my flying buddies would be a bit hesitant about performing a maiden flight on Back of Wrecker. Out of all the slopes at the Bwlch, it is our least favourite, suffering from turbulence caused by the forest below, the patchy lift it sometimes produces, and the fact that if it all goes wrong, it can be difficult to retrieve your model as the cliff is almost vertical with a road at the bottom.

But we had about 17 mph of southerly wind, and I'd already sent up the Wildthing to test the air, so on I went.

I headed up to the brow behind the slope and gave the Moth a few test throws and found I had to add a few clicks of up elevator trim.

Mark did the honours for me and threw the Moth, but it nose dived straight into the ground. A few more clicks of elevator trim and Mark tried again. It probably helped that this time he was also standing closer to the edge of the slope as this time it went away without a hitch.

Due to the low cloud I had to keep the Moth low and cruise back and forth only. So now happy that she was trimmed, I decided to bring her in as the clag was beginning to come in and soon I wouldn't be able to see it.

Mark, Mike and myself hung around for a while, and eventually the skies cleared and I was able to launch her again, and she flew beautifully.

So now I just have to play about with the CofG until I find the "sweet spot".

Enjoy the video.

Weekends Flying and Meio Common Sold.

Saturday was forecast to be the best day weather wise to fly, with a southerly forecast, so I headed up to the Bwlch and arrived just as Mark and Mike were walking over the brow to Back of Wrecker.

I was only intending staying an hour or two so I only took a couple of foamies, my new Moth being one of them. Well, it had to have it's maiden flight at sometime, and although Back of Wrecker isn't the best of slopes, I decided to give it a chuck.

I won't say anymore about how it went now as I took some video which needs editing before I can put it on here, so I'll write up the whole story later when I include the video. Here's a picture to keep you going though.

Sunday morning and Mark, Wayne and myself headed to Meio Common as the wind was forecast as light south westerly.

When I arrived, Mark was already there but thick clag covered the hill, so we stood around chatting for an hour hoping the clag would clear. Wayne turned up and we must have waited another 30 minutes before it looked like we may be in luck and headed up to the top of the hill.

Once at the top, the clag was thinning but coming and going, so Wayne and I chucked our Wildthings up and began doing a bit of VTPR style flying, just about keeping the models out of the clag.

Shortly afterwards, the clag cleared and I stayed for about an hour having a bit of fun chucking the foamies about.

Whilst we were stood by the cars chatting, the local farmer came along, stopped and chatted to us. He was saying that the Common had been sold to a private buyer for a fee of £40k and the farmer thinks the buyer is going to have wind turbines put on top of the hill, which will bring him an income.

Initially this sounded as if it could have disastrous consequences for our flying, as Meio is probably the slope that we all fly the most. But on reflection, it may not be that bad.

The top of the hill has a vast flat area, so there is plenty of space to put turbines, so I doubt they will be placed that close to the ridge line and affect us flying. And in fact, to get the turbines up there and be able to maintain them, a road would have to be built, so that could be very advantages to us. We shall wait and see.

Later Dudes.

Moth Build - The Final Push

Well guys, this is it. All that was left to do was cover the beast.

So the wings were covered in shrink film from Hobby King, and the fuselage in Solartx. It's the first time I have used Solartex and I was really impressed at how easily it went on.

Once it was covered, I then gave the wing a second covering of 42 micron laminate film. This will protect the shrink film from the course vegetation on the slopes when landing. I'd noticed a few small nicks and tears in the film on the Polecat, so I'll be giving the Polecat the same treatment later.

And the final weight? 21 1/4oz

Hopefully the weather will be kind this weekend so I can get out and maiden her, we'll see.

Moth Build - the final assembly

So the last job to do on the assembly side is to make and fit the fin.

The kit provides two pieces of balsa which have to be glued together. Then the supplied template is laid on top and the balsa cut to shape. The template shows where the balsa join line should be and the direction in which the wood grain should run. Simple!

Except it wasn't simple! I laid the the balsa on top of the template to gauge the position of the grain and join line.

As you can see, there was more template than balsa. So I tried another way.

Nope, that wasn't going to work either. So it appears that NCFM have provided an incorrect size of balsa. And yes, the template did print at the correct size because it also included the wing tip template, and that was perfect.

So my choices were to use the supplied balsa, make the fin smaller and with the grain running vertically instead of at an angle or, make a new fin out of my own stock of balsa sheet. And that was what I decided to do.

And this is how it should have turned out with the supplied balsa.

So with the fin made, the next job was to cut a groove in the top of the fuselage for the fin to sit in. I measured and then used a blade to cut through the X weave tape and foam all the way down to the carbon longeron before widening the cut with a router type tool.

I then mixed up some epoxy and smeared the walls and floor of the groove with the glue. The fin was wrapped in a plastic bag and then inserted into the groove and left it there whilst the glue set.

I removed the fin and plastic bag from the groove and just added a strip of 1" (25mm) X weave tape along the bottom of the fin before inserting it back into the groove.

The fin isn't meant to be fixed in place, in case it has a mid air collision or dodgy landing, in which case the fin can be easily replaced. But the instructions do say you can use some clear tape just to ensure the fin remains in place during normal flying.

So the build/assembly stage is now complete and I'm ready to begin covering.

More Moth Build continued .............

So on Saturday I only managed to get one job done, and that was to glue the wing into the fuselage.

I had marked the wing during a dry fit to show the position of the fuse and I laid onto the wing, (both top and bottom surfaces), two strips of 1" (25mm) masking tape. This is to stop any glue that should be squeezed out of the fuse from sticking to the wing itself.

The wing was pulled out of the fuse by about ¾" (20mm) and a generous dollop of UHU POR was squeezed onto the wing and spread around, both on the top and the bottom. The wing was then pulled back into the fuse and then out the other side and the process repeated, so there was plenty of glue to stick the wing to the fuse.

--------------------------------------------------------------------------------------------------------------------------

The next job was to take the supplied elevons and create a bevel on the ¼" TE end, for this I used a razor plane and finally a light sanding. The elevons were then cut to length and the tips shaped as per the supplied template before being wrapped in 75 micron laminate film, which really stiffens them up.

The elevons were then attached to the wing using 1" (25mm) X weave tape and then a hot iron used to really stick them down.

Before I glued the wing to the fuselage, I decided it would be a good idea to ensure the servo's actually worked. Really I should have tested the servo's BEFORE I fitted them into the wing. So I found a spare receiver, set up the Moth on my transmitter, and bound the RX to the TX, and fortunately all worked ok. However, when I tried to fit the RX into the electronics compartment, it was too big and wouldn't fit.

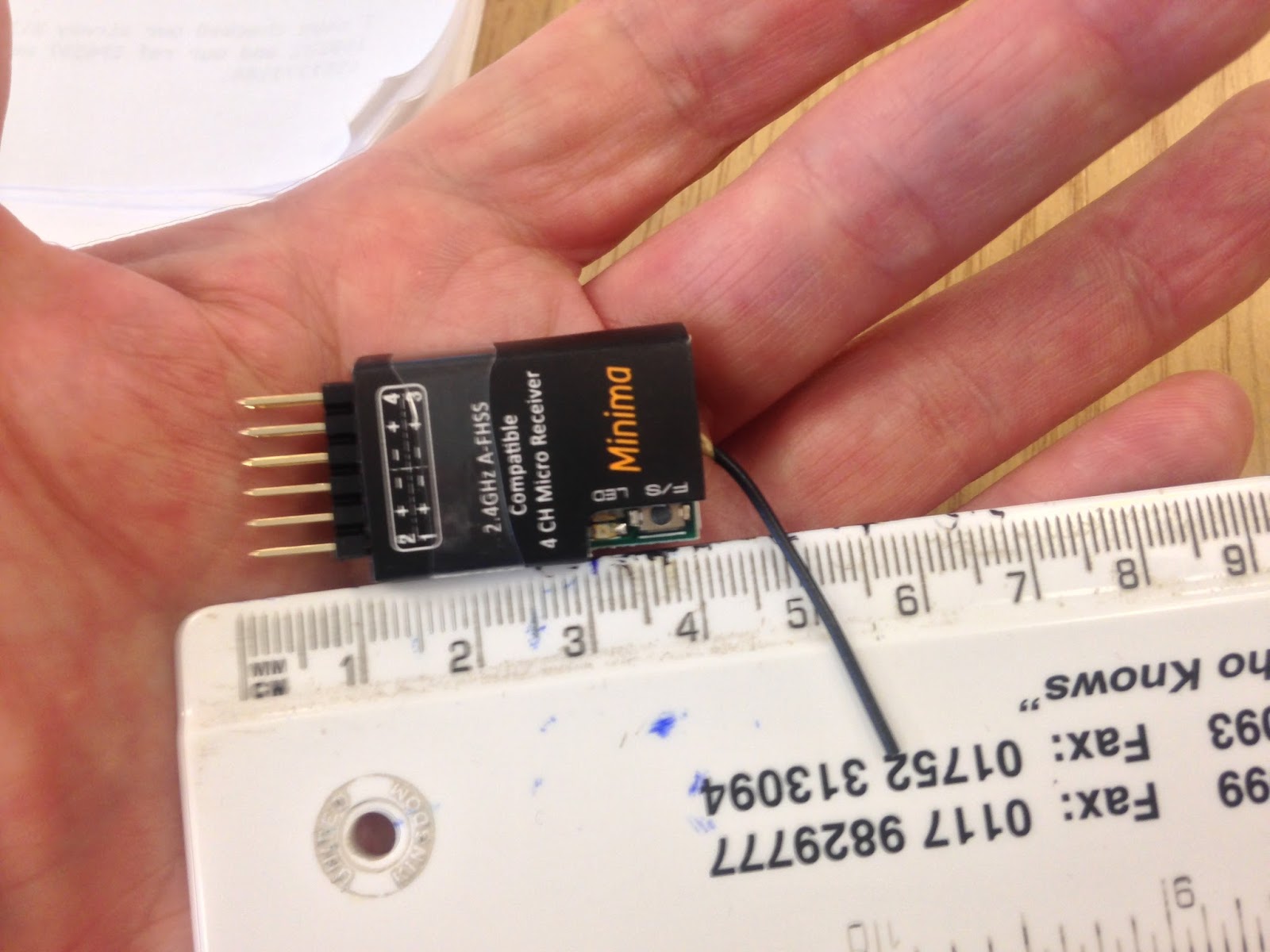

I usually use the Hobby King AFHSS Hitec Minima compatible RX in my models as they are really cheap, but I haven't had any problems with these at all. So an alternative had to be found.

I was thinking of using a original Hitec Minima RX, but after posting my issue on the BARCS forum, a alternative product was advised, a Frsky AFHSS Minima compatible unit available from T9 Hobbysport. This isn't a full range unit, but it does have a range of 1000m, so this would be perfectly adequate, after all, this model is designed for fast passes along the slope, so I'll be lucky if it gets 500m away from me.

I connected it up to the Moth, bound it to the TX, and it slides into the cavity very nicely.

I have been informed that the stumpy aerial has a habit of coming away from it's connection, but that a small blob of hot melt glue stops that occurring, so I will have to do that.

STUFF!

So I didn't get any flying in over this weekend. Saturday was cold but nice, however there wasn't enough wind to worth making an effort to hit a slope. I'm sure if I had then I'd have just been scratching around for lift. And Sunday began with little wind, misty, which turned to rain, so another non flying day was had.

I got a little bit more done to the Moth build on Saturday but I won't post until there's a bit more to say about it. I may get a little bit done this evening but it's more likely that it will be tomorrow evening now.

Mark made a suggestion a couple of weeks ago about staging a fun, F3F competition style race day, for foamy built models only, as most of us in our flying group have at least one foamy model in the hanger. Although Big Phil felt that his little Spook, (Weasel lookalike) wouldn't be up to the job of racing, so he decided to purchase a Spectre from Flyingwings to race with.

So I guess now we just need to wait for some suitable weather, possibly early spring, as it's a bit chilly at the moment to be standing around for long periods. My Moth and Polecat will be ready and waiting!

Until next time

Happy flying

Steve

Moth Build still continued ............

So I had a change of plan this evening. I was intending on making up the RC component hatches, but instead I ended up laying down X weave tape onto the centre section of the wing, top and bottom and rubbed the tape down with sand paper to remove the release agent ready for gluing to the fuse. I also added a layer to the LE.

Next up a job I've grown to really enjoy doing, laminating, or NS (new stuff) as some still call it.

There are a lot of people who think that you need to use some kind of spray glue, such as 3m 77 for the lam to stick down properly, but that has never been my experience and this is the 5th model I've laminated and I have never felt the need to use any extra glue to hold down the lam, which sticks down perfectly well by itself.

I do each of the four wing panels separately and cut the lam about 25mm (1") oversize, then I set the iron at 120*c. I begin in the middle of the wing and work outwards, then iron the overlapping bits over the LE and TE. This gives a double layer once you've completed the top and bottom to protect the LE from damage. Once the lam was down I reset the iron to 150*c and went over it again. This tightens it up and removes any wrinkles. If it's been done correctly, it should look like a glass finish.

Moth Build continued ....................

So the next job was to cut and sand the wing tips to shape.

Then I had to fit the rear carbon spar. This was achieved by measuring 3" down from the main spar, laying the rear spar on the foam and drawing the outline of the spar onto the foam. I then used a blade to cut the outline and a router type tool to remove the foam. I chose to use Gorilla glue instead of epoxy to glue the spar in place. The instructions say to use epoxy and then use scraps of balsa to fill any gaps, but by using the GG the glue filled any gaps instead.

The next job was to decide where to fit the servo's. The instructions recommend they are mounted up against the main spar, which makes sense! So I marked the foam and routered it out until the servo's, when fitted, were flush with the top surface of the wing.

The servo's were then potted. I mixed up some epoxy and used just enough the cover the walls and bottom of each servo bay. The servo was then placed in a polythene sandwich bag and pushed into the tight fitting bay and left to set. The servo was then taken out, removed from the bag and then I wrapped the servo in masking tape and secured the servo in place with a blob of hot melt glue.

The instructions say to fit the servo's so that the servo arms and control rods lay UNDERNEATH the wing. I have to say I do not like this idea. I guess it's fine if you are landing on a crown bowling green, but very few slopes are that smooth. Most of the UK forum builds I've looked at have put the control rods ABOVE the wing, and that is what I have done. This has meant I have had to take the servo wires over the top of the spar, but they should be ok.

So that is the wing now completed and ready to be mated with the fuselage, which will happen one I have made the RC component bay, which is my next job.

Moth Build Continued ..............

So the next job to be done to the wing is to glue the drag spar to the TE of the wing. Glue is left off the centre 2½" so that the drag spar joiner can be fitted once the glue has set on the drag spar. Then the drag spar joiner is laid on top of the foam and the foam marked then cut out, then the drag spar joiner is glued in place.

In the mean time, whilst glue has been setting during the above tasks, I made a start on the fuselage.

The carbon tube longeron supplied is glued into the slot which runs almost the full length of the bottom section. Enough epoxy is supposed to be mixed so that the glue is pushed up the sides of the longeron and then fill the gap above to the fuselage top, totally encasing the longeron in epoxy. However, I'm trying to keep this build light so I only used enough epoxy to glue the longeron in place. It's certainly secure enough!

I then made provision for adding a switch as the hole for this was going to be easier to make before the fuselage top was glued to the bottom section.

Instead of the recommended epoxy, I glued the two halves together using UHU POR, which is more elastic in nature, epoxy is quite brittle and I'd rather there be a little give there.

In the picture above, you can see there is a slot in the nose where the longeron ends. This slot is filled with a supplied piece of foam dowel and just glued into place.

Once the glue has dried, the shaping of the fuselage can begin by using a blade to shave off 3mm of foam from each corner and then sanding smooth and to shape.

I couldn't resist putting the wing into the fuselage for a cheeky look.

So the next jobs are to shape the wing tips and add the rear wing spar before looking at fitting the servo's.

I've read on one of the forums that it was recommended to make a ply box to fit the servo's into as over time the foam around a potted servo compresses and makes the servo loose. This is something I haven't experienced before with an EPP model. Usually what I do is wrap the servo in masking tape and use a large blob of hot glue to secure it in position, so that the glue comes up the sides of the servo, the servo then is secure and doesn't move, but also, by using the hot glue, the servo is easily prized out should the need arise.

This is something I shall have to think about, but my instinct is to use my tried and trusted method.

Steve

Drones - A further call to arms

I've pinched the following from the Goodwind Slope Soaring blog, but I feel that this has been worded well and so there was no need for me to make much in the way of change.

In case you haven't heard already .......

Ireland's new regulations

American UAS registration

If similar rulings were to be made in Britain, it would ruin our hobby.

Take action NOW and contact your local MP.

Make it clear that-

The models we fly are not 'drones', they are carefully constructed aircraft that take great skill to fly and build.

They require 'line of sight' visual contact at all times.

The hobby is one that is shared across the generations.

The hobby encourages innovation and the learning of a wide range of practical 'hands on' skills, especially among younger participants.

The hobby encourages many people from different backgrounds to socialise.

The hobby is healthy and environmentally friendly and encourages people to spend time outdoors in locations which, for decades, have hosted model flying events without incident.

With multi-copters (or drones as they are commonly referred to) becoming widely available, the 'off the shelf' technology allows people with no experience to fly straight away. This can often lead to irresponsible behaviour, especially when used in conjunction with the 'on board' cameras that allow beyond 'line of sight' control.

The rulings in Ireland and the USA effectively outlaw the hobby we have enjoyed for decades.

We require their assistance in protecting our position should any rulings similar to those in the USA and Ireland, be proposed in Britain.

Contact the BMFA stating-

Your utmost concern regarding the developments in the USA and Ireland.

You require a clear response as to how the BMFA (as your representative) intends to help block any similar rulings that may be proposed for Britain.

Ask that the proposals for the 'BMFA National Flying Centre' be put on hold until it is clear that the flying freedoms we currently enjoy will be fully protected.

--------------------------------------------------------------------------------------------------------------------------

My own feelings are that something certainly needs to be done regarding drones. I think that the larger, professional drones used in industry, television etc should be registered and the operators properly trained before a licence is issued to the operator and that they should be properly insured, as we are.

Secondly I feel that the smaller, cheaper units purchased by many for leisure use should be restricted in their operating range, possibly a Park Fly type receiver, giving a range of say 100 - 150 metres, this would stop, out of visual range, FPV use, and that all units sold in the UK should have documentation included to state what the British law is relating to the use of drones and that suitable insurance should be obtained.

If something isn't done NOW, there will be a serious accident, lets not wait for that incident to happen before we make make changes to the law.

Steve

NCFM Moth Build

Well Christmas 2015 is now gone and it's time to get on and build my Christmas present, and the first thing to do was look at the contents of the box.

Then I read the build instructions that came on the provided disc in PDF format. I also looked at a few build blogs I found on line.

The first assembly task was to join the wing halves with 5 minute epoxy, however I didn't have any, so 30 minute epoxy would have to do.

This is done whilst resting on the wing beds, so I taped the two wing bed panels together firstly.

Then, so as to not stick the joined wing to the beds with any epoxy which might drip through, I placed a piece of grease proof paper onto it, glued the two wing halves together and held them together using masking tape, and weighted it down with my sugar jar.

Once the glue had set, I then ran a length of masking tape along each side of spar groove. The two carbon tubes fit into an aluminium tube, which is slightly wider than the groove and the foam has to be marked and cut to allow this to fit.

There will be a gap at the end of each wing, and so foam from the wing bed has to be cut out to fit the spar slot and glued in place. I used UHU POR for this.

I then ran Gorilla Glue along the whole length of the spar grove and fitted the spar. I then covered this with more grease proof paper and weighted the spar down with tins of baked beans, tomatoes and whatever else I had in the kitchen cupboard and left it to dry overnight.

Upon inspection this morning, the Gorilla Glue had seeped through the foam and slightly stuck it to my building board, but this was easily prized off.

I only used a small drizzle of glue as it expands into a foam, but only a little of it had come up the sides of the carbon spar tube.

This evening I poured epoxy over the top of the carbon spar tubes and fitted the balsa spar cap filler strips.
